High rigid structure design
High rigidity honeycomb shaped structure design, stable accuracy for long-term use , suitable for high-precision parts machining applications
Expert System Database
Built-in intelligent expert system database
Hidden wire cable design
Special protection for positive and negative cable and wire to avoid wire cables’ aging and damage due to years of exposure, extends machine lifespan
Made in Taiwan
| Specification | S55T |
|---|---|
X, Y Axis travel distance | 550 x 350 mm |
U, V Axis travel distance | 120 x 120 mm |
Z Axis travel distance | 300 mm |
Max. Workpiece Size | 880 x 730 x 300 mm |
Max. Workpiece Weight | 550 Kg |
Work Tank Dimensions (W x D x H) | 920 x 770 x 335 mm |
Wire Dimeter | 0.1 – 0.3 mm |
Max. Wire Spool Weight | 10 Kg |
Max. Cutting Taper | ±30° / 120 mm |
Best Surface Finish | < Ra 0.3 um |

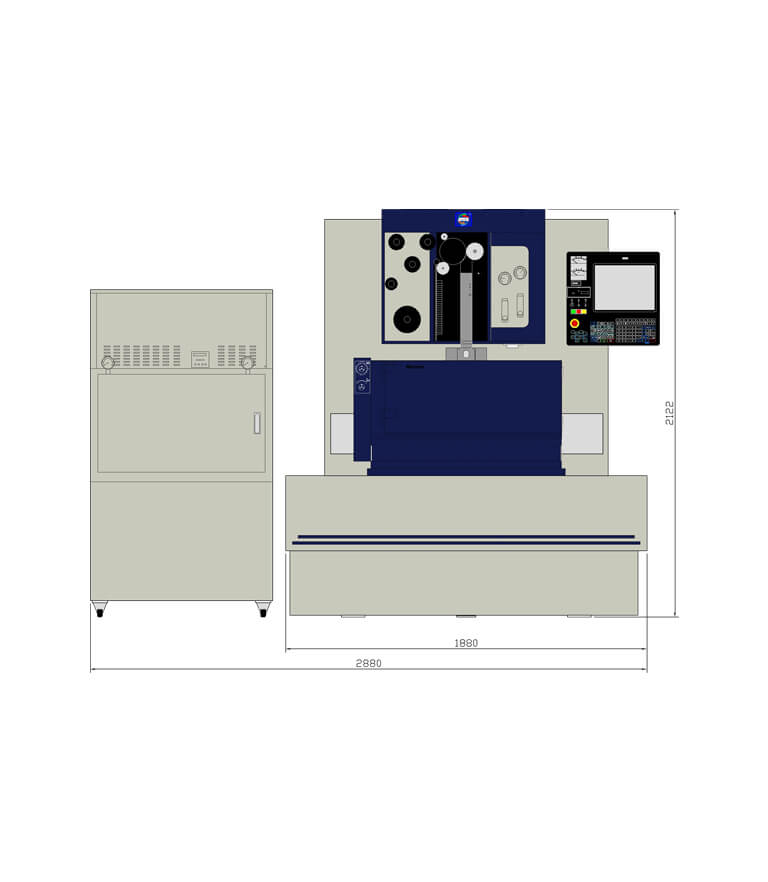

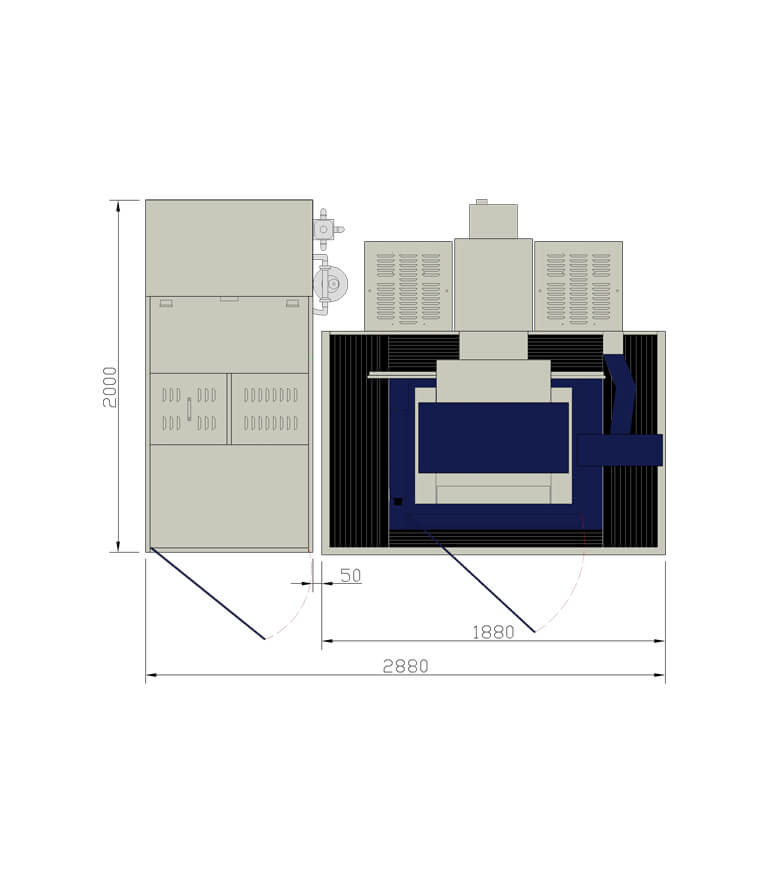

Machine Dimensions | 2900 x 2400 x 2150 mm |

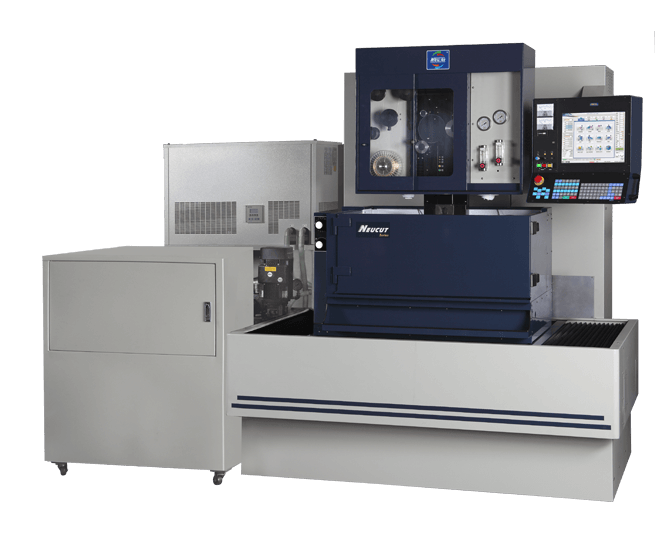

S55T Series
High rigid structure design
High rigidity honeycomb shaped structure design, stable accuracy for long-term use , suitable for high-precision parts machining applications.
Expert System Database
Built-in intelligent expert system database, by only machining parameter input, it can automatically search for the best cutting conditions.
Hidden wire cable design
We have a particular structure hidden design for S55T cable and wire , special protection for positive and negative cable and wire to avoid wire cables’ aging and damage due to years of exposure, extends machine lifespan, and saves space of work tank to facilitate the operation.
15″ touch screen with Windows operation system interface
Simple interactive graphical operation interface with touch screen panel, improving complex operation of traditional CNC machine and non-intuitive operation trouble.
Auto Wire Threading (AWT) system
Automatic wire threading at break points, reducing downtime and realizing 24-hour uninterrupted machining.
Original Z-axis anti-collision protection device
The design of movable and anti-collision Z-axis can effectively prevent operator’s negligence from accidental collision and damage.
The design of movable and anti-collision Z-axis can effectively prevent operator’s negligence from accidental collision and damage.
Equipped with HEIDENHAIN optical linear scale as standard, full-time closed loop control, to achieve high-precision machining stability.
