User Friendly
Automatic system is also available
Safety System
High standard special safety system
Made in Taiwan
Manual Clamping
| Specification | TPR-720A | TPR-820A | TPR-920A | TPR-1100 | |
|---|---|---|---|---|---|
Dai.of column | 210 | 210 | 210 | 260 | |
Distance from column surface to spindle center , Max | 750 | 850 | 950 | 1120 | |
Distance from column surface to spindle center , Min | 225 | 230 | 210 | 270 | |
Travel of spindle head | 540 | 640 | 755 | 850 | |
Distance from base surface to spindle end , Max | 1050 | 1210 | 1225 | 1280 | |
Distance from base surface to spindle end , Min | 260 | 375 | 385 | 480 | |
Elevating height of Arm | 580 | 625 | 625 | 560 | |
Effective area of box table | 600×445×380 | 600×445×380 | 600×445×380 | 635x520x415 | |
Dimension of base | 1250x640x160 | 1250x640x160 | 1250x640x160 | 1720x715x185 | |
Taper hole spindle | MT#4 | MT#4 | MT#4 | MT#4 | |
Stroke of spindle | 210 | 210 | 210 | 240 | |
R.P.M of spindle (rpm x steps) 50HZ 60HZ | 73~1247×6 steps 88~1500×6 steps | 73~1247×6 steps 88~1500×6 steps | 73~1247×6 steps 88~1500×6 steps | 37-1253×12 steps 44-1500×12 steps | |
Main motor (HP) | 2HP | 2HP | 2HP | 3(two speed motor) | |
Elevating motor (HP) | 1HP | 1HP | 1HP | 1HP | |
Net weight (approx)kgs | 1175(kg) | 1200(kg) | 1280(kg) | 1800(kg) | |
Capacity Drilling Stell Capacity Drilling Cast iron | 32Φ 50Φ | 32Φ 50Φ | 32Φ 50Φ | 42Φ 55Φ | |
Capacity Tapping Stell Capacity Tapping Cast iron | 25Φ 32Φ | 25Φ 32Φ | 25Φ 32Φ | 25Φ 38Φ |
Electric Clamping
| Specification | TPR-1230 |
|---|---|
Dai.of column | 300 |
Distance from column surface to spindle center , Max | 1230 |
Distance from column surface to spindle center , Min | 330 |
Travel of spindle head | 880 |
Distance from base surface to spindle end , Max | 1360 |
Distance from base surface to spindle end , Min | 467 |
Elevating height of Arm | 620 |
Effective area of box table | 635x520x415 |
Dimension of base | 1720x715x185 |
Taper hole spindle | MT#4 |
Stroke of spindle | 270 |
R.P.M of spindle (rpm x steps) 50HZ 60HZ | 37-1253×12 steps 44-1500×12 steps |
Main motor (HP) | 3(two speed motor) |
Elevating motor (HP) | 1HP |
Hydraulic clamping motor (HP) | 1HP |
Net weight (approx)kgs | 2100(kg) |
Capacity Drilling Stell Capacity Drilling Cast iron | 42Φ 55Φ |
Capacity Tapping Stell Capacity Tapping Cast iron | 25Φ 38Φ |
Hydraulic Clamping
| Specification | TPR-1230H | TPR-2000H | TPR-C2500 |
|---|---|---|---|
Dai.of column | 300 | 432 | 550 |
Distance from column surface to spindle center , Max | 1230 | 2060 | 2500 |
Distance from column surface to spindle center , Min | 330 | 440 | 500 |
Travel of spindle head | 880 | 1620 | 2000 |
Distance from base surface to spindle end , Max | 1360 | 1950 | 2000 |
Distance from base surface to spindle end , Min | 467 | 395 | 550 |
Elevating height of Arm | 620 | 1185 | 1000 |
Effective area of box table | 635×520×415 | 1000×800×500 | 1000×800×560 |
Dimension of base | 1720×715×185 | 1185 | 3520×1400×320 |
Taper hole spindle | MT#4 | MT#5 | MT#6 |
Stroke of spindle | 270 | 370 | 450 |
R.P.M of spindle (rpm x steps) 50HZ 60HZ | 37-1253×12 steps 44-1500×12 steps | 29-1575×12 steps 35-1890×12 steps | 16-1250×16 steps 35-16-1250×16 steps |
Main motor (HP) | 3HP | 7-1/2HP | 10HP |
Elevating motor (HP) | 1HP | 2 HP / 3 HP | 5HP |
Hydraulic clamping motor (HP) | 1HP | 1HP | 1HP |
Net weight (approx)kgs | 2100 | 5600 | 11000 |
Capacity Drilling Stell Capacity Drilling Cast iron | 42Φ 55Φ | 65Φ 70Φ | 80Φ 100Φ |
Capacity Tapping Stell Capacity Tapping Cast iron | 25Φ 38Φ. | 50Φ 60Φ | 65Φ 75Φ |

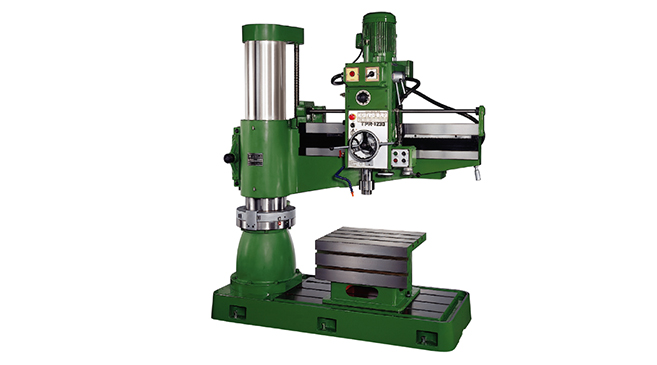

TPR-1230H

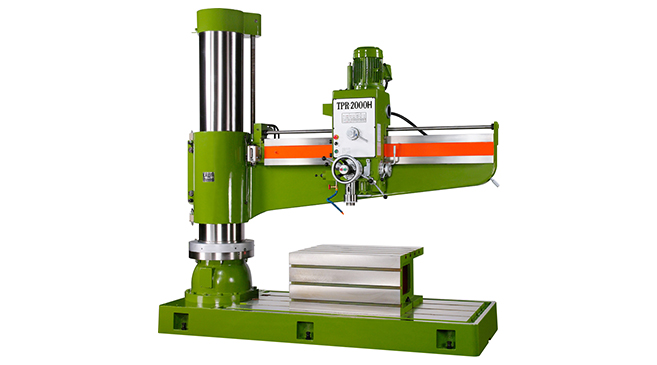

TPR-2000H

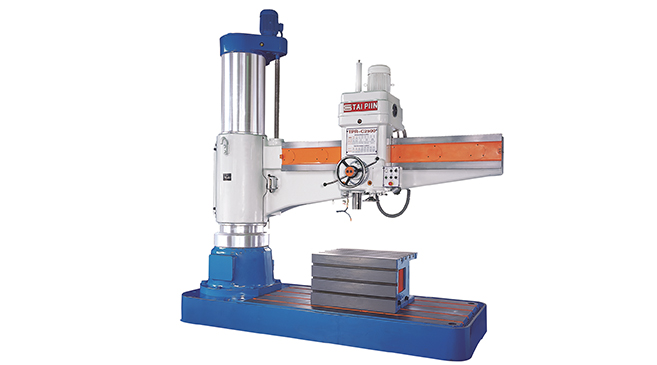

TPR-C2500
(Full Hydraulic Clamping Radial Drill)
(Full Hydraulic Clamping Radial Drill)
