Controller System
Heidenhain TNC640/Siemens 840D
ความเร็วและความแม่นยำ
โดดเด่นเรื่องความเร็วและความแม่นยำในการทำงาน
Tilting Head & Turning Type
Made in Taiwan

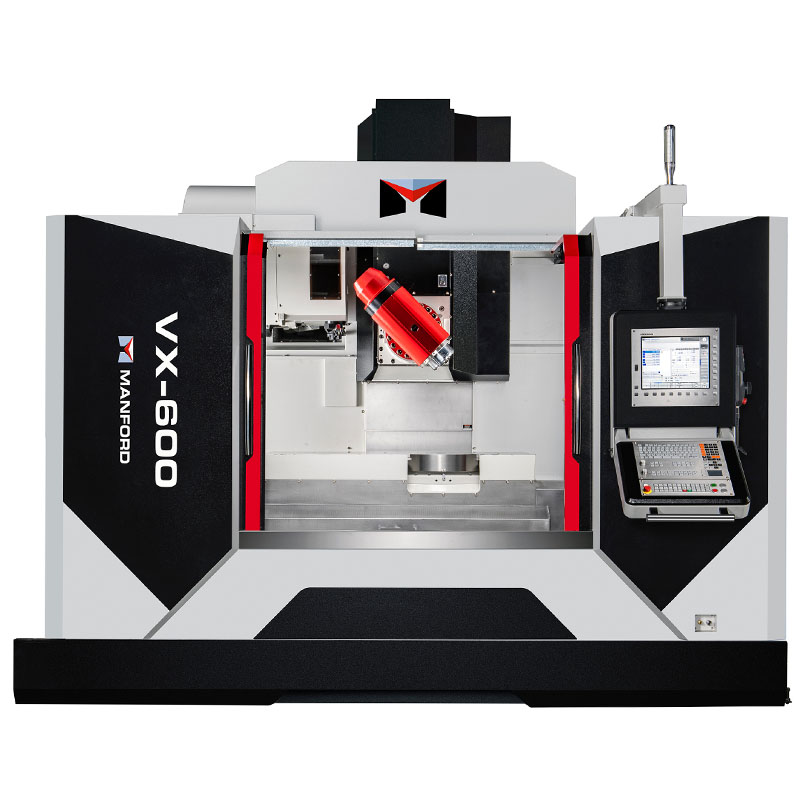

VX-600
| Specification | VX-600 |
|---|---|
X/Y/Z TRAVEL | 1,300/700/700 mm. |
SPINDLE NOSE TO TABLE SURFACE | 20 ~ 720 mm |
TABLE SIZE | 700 x 1,450 mm |
T-SLOT (Q’TY X SIZE X DIST) | 5 x 18 x 125 mm |
MAX. TABLE LOAD | 1,000 kgs |
ATC CAPACITY | 24 / 40 / 60 tools |
CNC CONTROL | Heidenhain TNC640/ Siemens 840D |
TRANSMISSION (B AXIS) | Worm gear |
TILTING ANGLE | -120˚ ~ +30˚ |
SPINDLE TRANSMISSION | Build-in |
SPINDLE TAPER | BBT40 |
SPINDLE SPEED | 15,000 rpm |
TRANSMISSION (C AXIS) | DD motor |
TABLE DIAMETER | Ø 630 mm |
C AXIS ROTATING RANGE | 360˚ |
MAX. SPEED | 120 rpm |
VX-600T
| Specification | VX-600T |
|---|---|
X/Y/Z TRAVEL | 1,300/700/700 mm. |
SPINDLE NOSE TO TABLE SURFACE | 20 ~ 720 mm |
TABLE SIZE | 700 x 1,450 mm |
T-SLOT (Q’TY X SIZE X DIST) | 5 x 18 x 125 mm |
MAX. TABLE LOAD | 600 kgs |
ATC CAPACITY | 24 / 40 / 60 tools |
CNC CONTROL | Heidenhain TNC640/ Siemens 840D |
TRANSMISSION (B AXIS) | Worm gear |
TILTING ANGLE | -120˚ ~ +30˚ |
SPINDLE TRANSMISSION | HSK-T63 |
SPINDLE SPEED | 12,000 rpm |
TRANSMISSION (C AXIS) | DD motor |
TABLE DIAMETER | Ø 630 mm |
C AXIS ROTATING RANGE | 360˚ |
MAX. SPEED | 1,200 rpm |
VX-800
| Specification | VX-800 |
|---|---|
X/Y/Z TRAVEL | 1,600/900/850 mm. |
SPINDLE NOSE TO TABLE SURFACE | 20 ~ 870 mm |
TABLE SIZE | 850 x 1,800 mm |
T-SLOT (Q’TY X SIZE X DIST) | 5 x 22 x 150 mm |
MAX. TABLE LOAD | 1,500 kgs |
ATC CAPACITY | 24 / 40 / 60 tools |
CNC CONTROL | Heidenhain TNC640/ Siemens 840D |
TRANSMISSION (B AXIS) | Worm gear |
TILTING ANGLE | -120˚ ~ +30˚ |
SPINDLE TRANSMISSION | Build-in |
SPINDLE TAPER | BBT40 |
SPINDLE SPEED | 15,000 rpm |
TRANSMISSION (C AXIS) | DD motor |
TABLE DIAMETER | Ø 800 mm |
C AXIS ROTATING RANGE | 360˚ |
MAX. SPEED | 60 rpm |
