High stability & reliability
Using industrial 23bit PC-BASE control system
High security function
when electrodes short and discharge voltage too low, prevent the electrode and mold from damage
Made in Taiwan

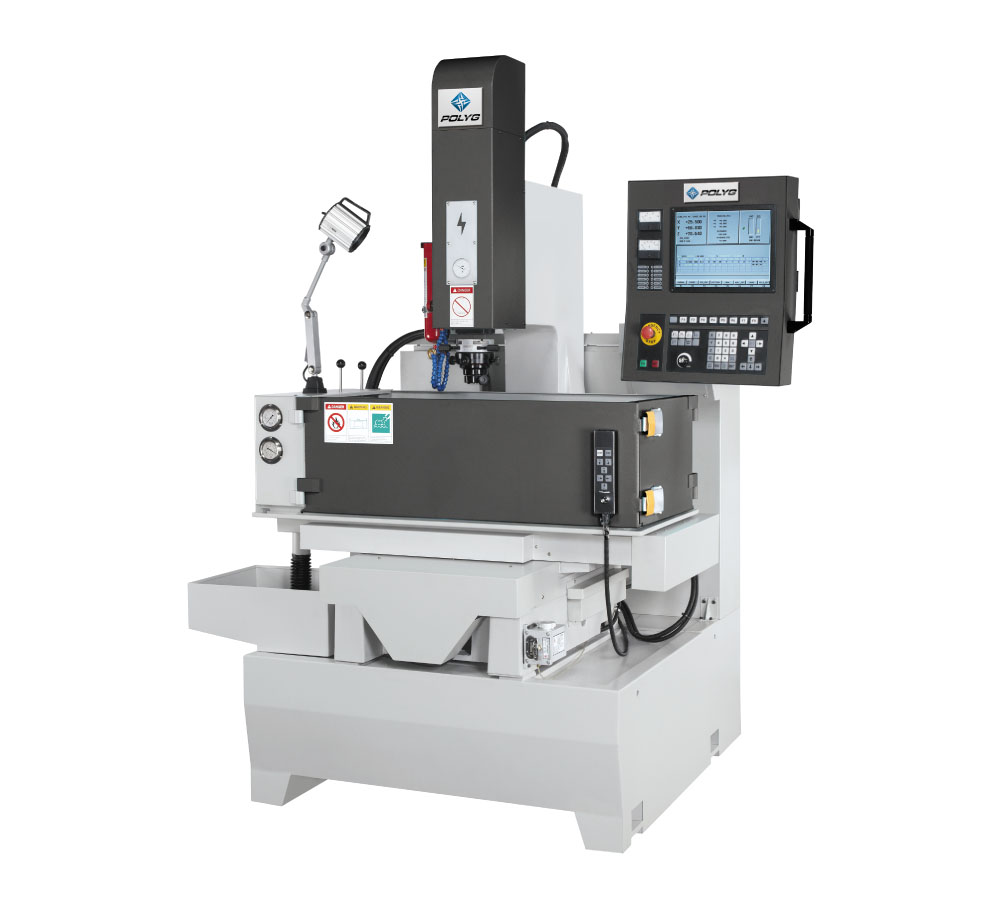

MIC-432CS
| Specification | MIC-432CS |
|---|---|
Work Table Size (mm.) | 700×350 |
X/Y/Z Travel (mm.) | 400x300x200+200 |
Electrode Plate To Work Table (mm.) | 180-580 |
Max. Electrode Weight (kg.) | 90 |
Max. Workpiece Weight (kg.) | 600 |
Work Tank Size (mm.) | 1045x540x375 |
Weight of Machine Unit (kg.) | 1450 |
Outside Dimension (mm.) | 1600x1400x2300 |
Oil Tank Capacity (L) | 350 |
Oil Tank Net Weight (kg.) | Built-in |
Oil Tank Outside Dimension (mm.) | – |
MIC-432CS
One axis digital control
MIC-542C
| Specification | MIC-542C |
|---|---|
Work Table Size (mm.) | 800×450 |
X/Y/Z Travel (mm.) | 500x400x200+300 |
Electrode Plate To Work Table (mm.) | 240-740 |
Max. Electrode Weight (kg.) | 220 |
Max. Workpiece Weight (kg.) | 1350 |
Work Tank Size (mm.) | 1170x690x425 |
Weight of Machine Unit (kg.) | 1950 |
Outside Dimension (mm.) | 1350x1640x2150 |
Oil Tank Capacity (L) | 520 |
Oil Tank Net Weight (kg.) | 200 |
Oil Tank Outside Dimension (mm.) | 1200x850x540 |
MIC-432CS
One axis digital control

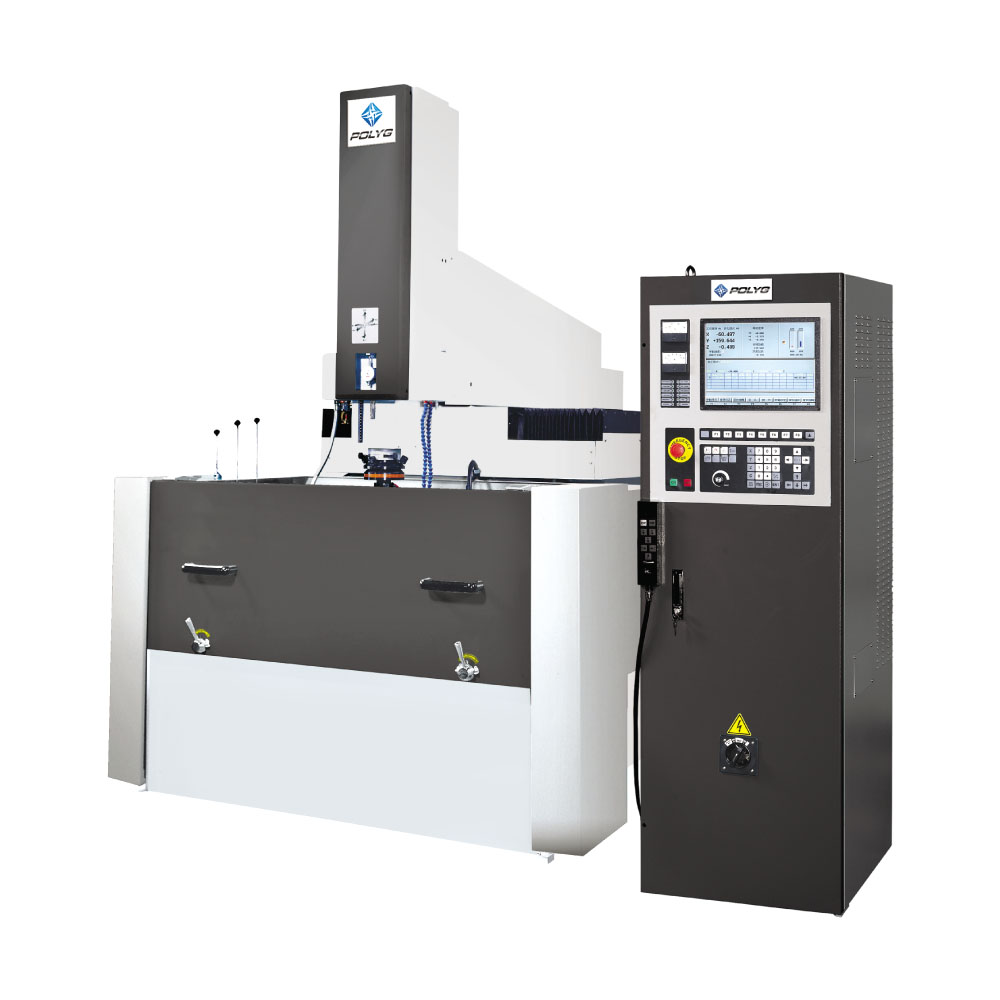

MIC-640L
| Specification | MIC-640L |
|---|---|
Work Table Size (mm.) | 1000×600 |
X/Y/Z Travel (mm.) | 600x450x400 |
Electrode Plate To Work Table (mm.) | 355-755 |
Max. Electrode Weight (kg.) | 250 |
Max. Workpiece Weight (kg.) | 3000 |
Work Tank Size (mm.) | 1500x940x520 |
Weight of Machine Unit (kg.) | 3900 |
Outside Dimension (mm.) | 1720x1800x2610 |
Oil Tank Capacity (L) | 960 |
Oil Tank Net Weight (kg.) | 350 |
Oil Tank Outside Dimension (mm.) | 1905x1100x540 |
MIC-640L

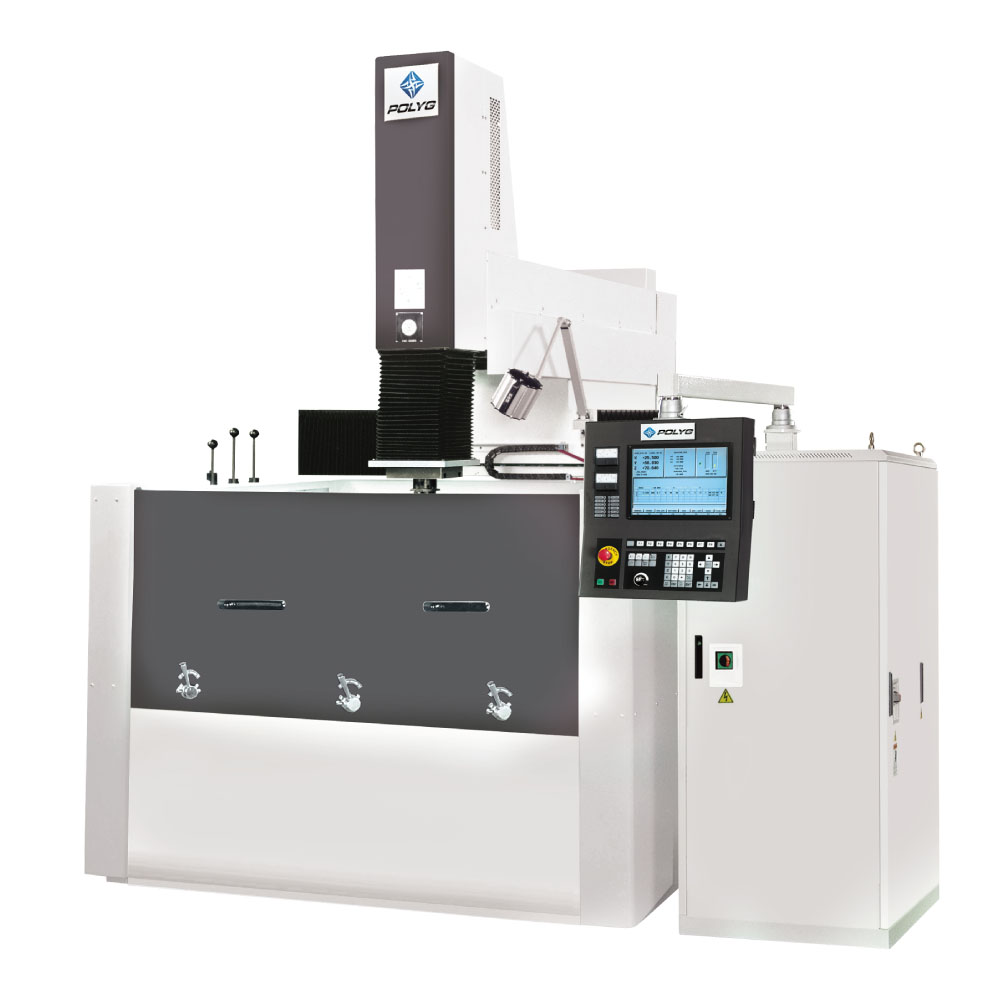

MIC-1060L
| Specification | MIC-1060L |
|---|---|
Work Table Size (mm.) | 1250×750 |
X/Y/Z Travel (mm.) | 1000x600x500 |
Electrode Plate To Work Table (mm.) | 460×960 |
Max. Electrode Weight (kg.) | 350 |
Max. Workpiece Weight (kg.) | 4500 |
Work Tank Size (mm.) | 1900x1100x625 |
Weight of Machine Unit (kg.) | 5500 |
Outside Dimension (mm.) | 3400x2600x3200 |
Oil Tank Capacity (L) | 1610 |
Oil Tank Net Weight (kg.) | 500 |
Oil Tank Outside Dimension (mm.) | 2300x1400x580 |
MIC-1060L
Features
- Using industrial 23bit PC-BASE control system, high stability & reliability.
- Chinese and English bilingual operation, user friendly guided dialogue. Easy to learn & operate.
- Simple eroding editing, even only need current and depth commands entry.
- During sparking, self-adjust sparking condition to ensure better performance. Easy to operate.
- Turn the machine on, the original sparking codes showed. Push Sparking ON to carry on the job.
- ZNC, PNC can link the external orbit-cut for enlarge & fine finished caving machining.
- High technology optical component and CNC control for anti-interference and precise supplication. Linear scales be used for accurate position control.
- Module-design optical component and CNC control for anti-interference and precise application.
- DDS: Digital Discharge System Total digital discharge system, high sparking efficiency, fine finish surface.
- ADE: Absolute Digital Equal Capacity Discharge System
Absolute digital equal capacity discharge, better working performance got, quicker up 10-20%, and lower electrode wear ratio about 20-25%. - DSD: Digital Synchronism Discharge recognizer System Supervising the sparking status, automatically modified eroding parameters to get the best result.
- POWER MOSFET used, let the machining total-digital controlled for sparking.
- Sparking OFF during retracting. Quicker speed than other brands. Double sparking avoided.
- High security function, when electrodes short and discharge voltage too low, prevent the electrode and mold from damage.
- Sparking stability command and retracting up speed command can be adjusted separately, convenient for application, especially for the eroding ability with large area electrode.
- High power & high frequency PWM servo motor drive system used for high sensitivity of sparking.
